Ox Range
Space-saving
Ultra quiet
Direct drive
Digital control panel
Temperature and overload protection
The OX range is ideally suited to maintenance workshops, panel shops, and various other applications where air demand is intermittent or fluctuates throughout the day. Its design ensures reliable performance and efficiency even during periods of irregular usage.
Ranging from 4.5kW - 15 kW (7.5hp - 20hp).
Standard Specs:
Drive Type: Direct Drive
Max Ambient Temperature: 50 degrees Celsius
Starting DOL: (staged for 15kW)
Power Supply: 415V /3ph/50Hz
OX4.5-
-
8 Bar = 23 CFM / 116 PSI
-
91 × 54 × 70 (L x W x H (cm))
160 (Kg)
-
200 × 65 × 150 (L x W x H (cm))
480 (Kg)
-
Dimensions (L x W x H (cm))
200 × 65 × 150
Weight
500 (Kg)

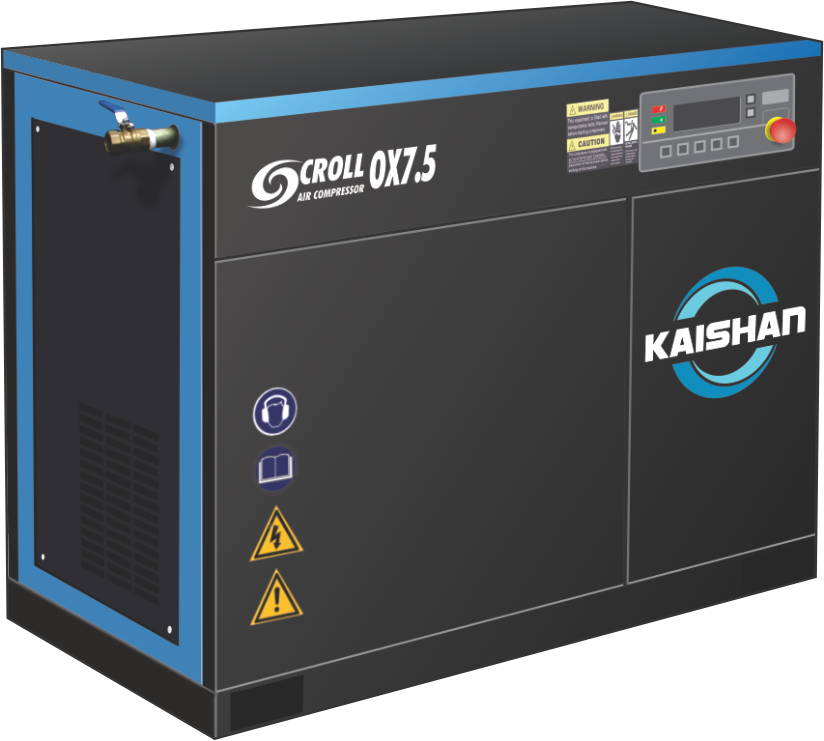

OX7.5-8
OX7.5-10
-
8 Bar = 39 CFM / 116 PSI
10 Bar = 32 CFM / 145 PSI
-
96 × 56 × 80 (L x W x H (cm))
238 (Kg)
-
200 × 65 × 160 (L x W x H (cm))
580 (Kg)
-
Dimensions (L x W x H (cm))
200 × 65 × 160
Weight
600 (Kg)

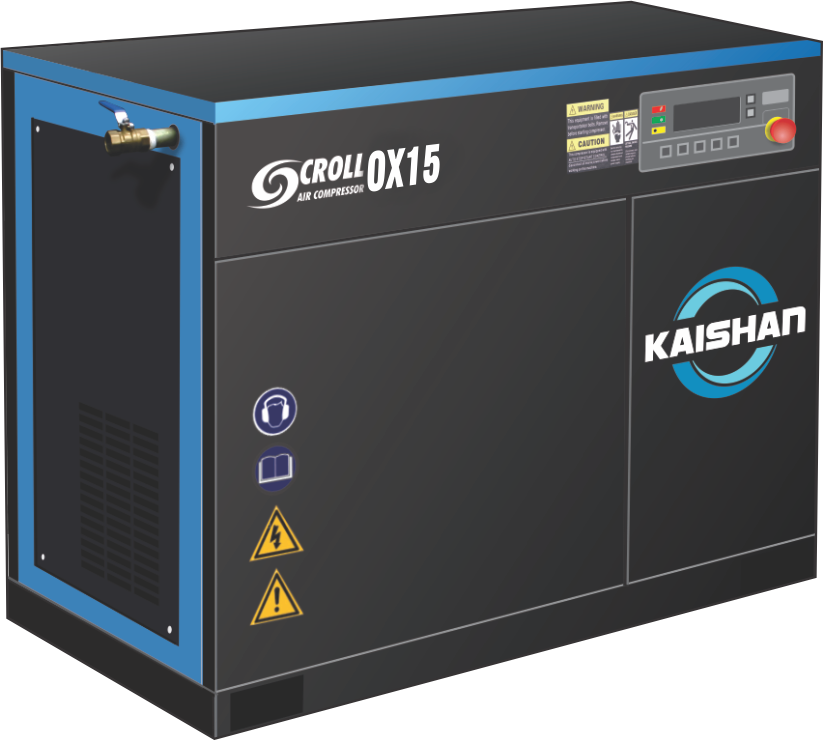

OX15-8
OX15-10
-
8 Bar = 78 CFM / 116 PSI
10 Bar = 60 CFM / 145 PSI
-
113 × 70 × 97 (L x W x H (cm))
428 (Kg)
-
200 × 70 × 175 (L x W x H (cm))
790 (Kg)
-
Dimensions (L x W x H (cm))
200 × 70 × 175
Weight
810 (Kg)
KRST Range
Space saving
Digital control panel
500L receiver
Automatic belt tensioning
MEPS II compliant drive motor
Integrated aftercooler, dryer and air filter
The KRST range of compressors are commonly used in various manufacturing environments, workshops, fabrication facilities, and even in specialized industries such as timber processing. These compressors are particularly well-suited for applications that experience intermittent demand, providing reliable performance and efficiency during periods of variable usage.
KRST 5.5
-
5.5 kW - 7 hp
-
8 Bar = 28 CFM / 116 PSI
10 Bar = 22 CFM / 145 PSI
13 Bar = 19 CFM / 188PSI
-
188 × 65 × 163 (L x W x H cm)
600 (Kg)
-
KSAD-1HF
-
67 (dB(A))

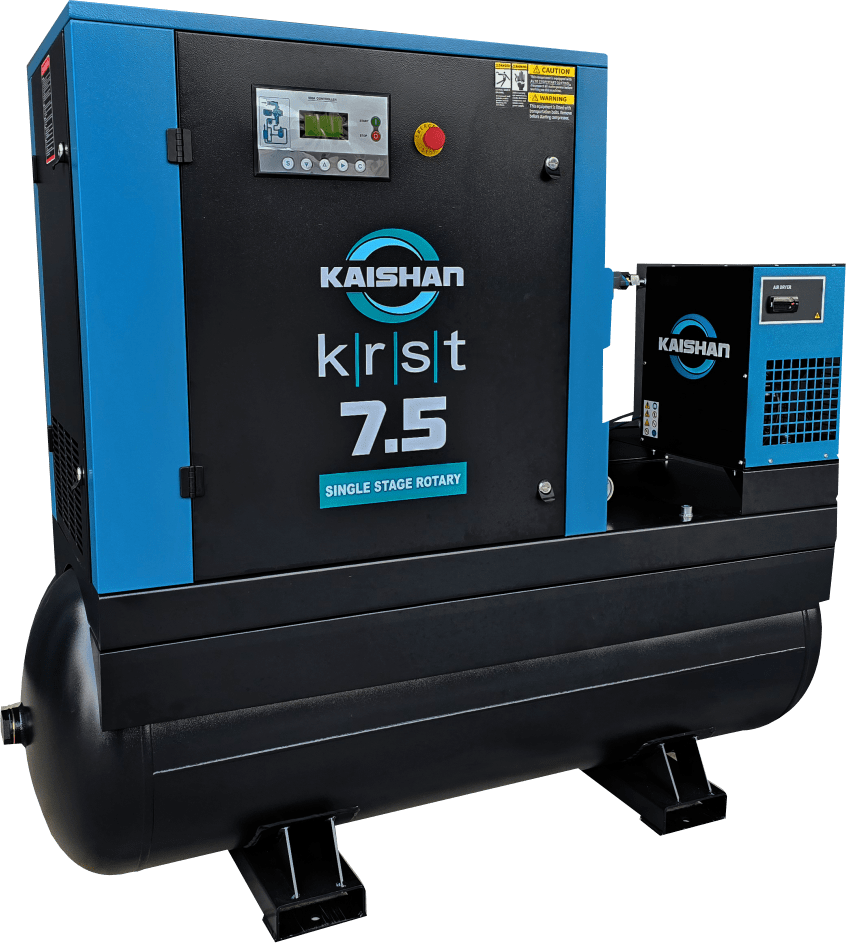

KRST 7.5
-
7.5 kW - 10 hp
-
8 Bar = 40 CFM / 116 PSI
10 Bar = 32 CFM / 145 PSI
13 Bar = 24 CFM / 188 PSI
-
188 X 65 X 163 (L x W x H cm)
650 (Kg)
-
KSAD-1HF
-
67 (dB(A))
KRST 11
-
11 kW - 15 hp
-
8 Bar = 60 CFM / 116 PSI
10 Bar = 50 CFM / 145 PSI
13 Bar = 42 CFM / 188 PSI
-
188 × 70 × 168 (L x W x H cm)
800 (Kg)
-
KSAD-2SF
-
68 (dB(A))

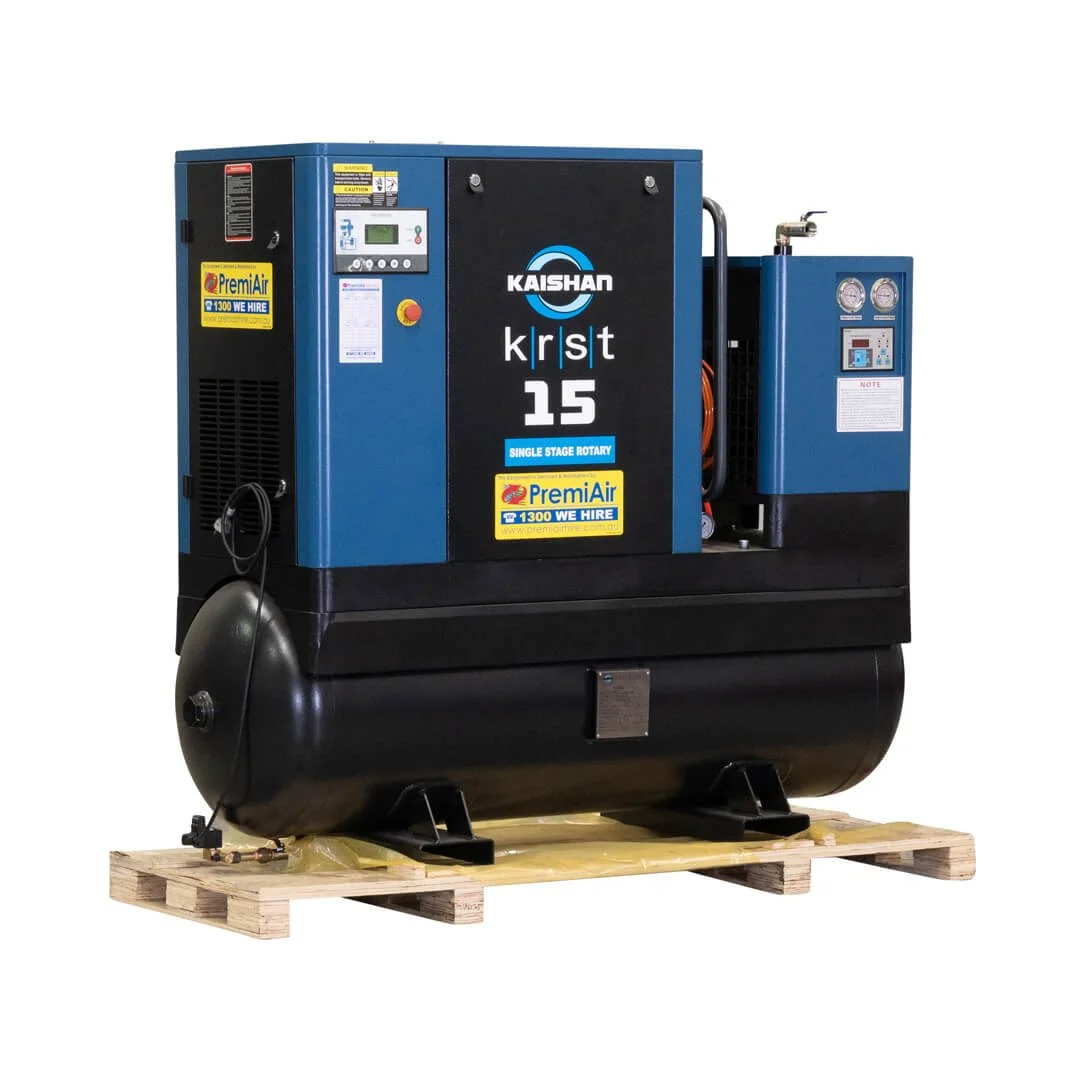

KRST 15
-
15 kW - 20 hp
-
8 Bar = 82 CFM / 116 PSI
10 Bar = 70 CFM / 145 PSI
13 Bar = 63 CFM / 188 PSI
-
188 × 70 × 168 (L x W x H cm)
880 (Kg)
-
KSAD-2SF
-
68 (dB(A))
PMV Range
PMV (Permanent Magnet Variable Frequency) rotary screw air compressors are flexible and used across many industries. They adjust air output to match changing needs, saving energy and cutting costs. Commonly used in manufacturing, food processing, and industrial sectors.
The PMV range is available in both single-stage and two-stage configurations, offering versatile options to suit various industrial applications and performance requirements.
Digital control panel
Advanced cooling
Rotary screw elements
Energy saving
Single Stage
PMV-15
-
15 (kW)
-
8 - 10 Bar = 87 CFM / 116-145 PSI
-
120 × 83 × 124 (L x W x H cm)
380 (Kg)
-
68 (dB(A))

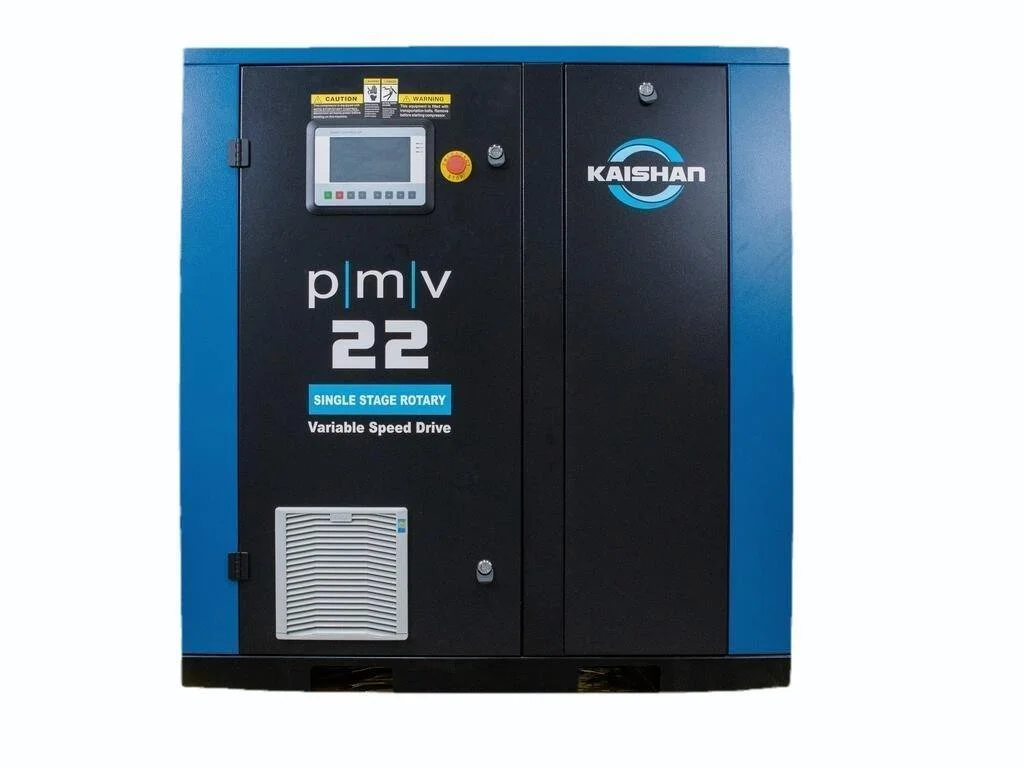

PMV-22
-
22 (kW)
-
8 - 10 Bar = 127 CFM / 116-145 PSI
-
120 × 83 × 129 (L x W x H cm)
480 (Kg)
-
68 (dB(A))
PMV-37
-
37 (kW)
-
8 - 10 Bar = 215 CFM / 116-145 PSI
-
140 × 100 × 154 (L x W x H cm)
710 (Kg)
-
69 (dB(A))
PMV-55
-
55 (kW)
-
8 - 10 Bar = 353 CFM / 116-145 PSI
-
150 × 116 × 170 (L x W x H cm)
990 (Kg)
-
70 (dB(A))
2-Stage
PMV2-22
-
22 (kW)
-
8 - 8.5 Bar = 150 CFM / 116-123 PSI
-
165 × 90 × 111 (L x W x H cm)
550 (Kg)
-
68 (dB(A))
PMV2-37
-
37 (kW)
-
8 - 8.5 Bar = 252 CFM / 116-123 PSI
-
182 × 100 × 114 (L x W x H cm)
740 (Kg)
-
69 (dB(A))
PMV2-55
-
55 (kW)
-
8 - 8.5 Bar = 367 CFM / 116-123 PSI
-
210 × 120 × 133 (L x W x H cm)
1100 (Kg)
-
70 (dB(A))
PMV2-75
-
75 (kW)
-
8 - 8.5 Bar = 519 CFM / 116-123 PSI
-
216 × 122 × 158 (L x W x H cm)
1450 (Kg)
-
70 (dB(A))

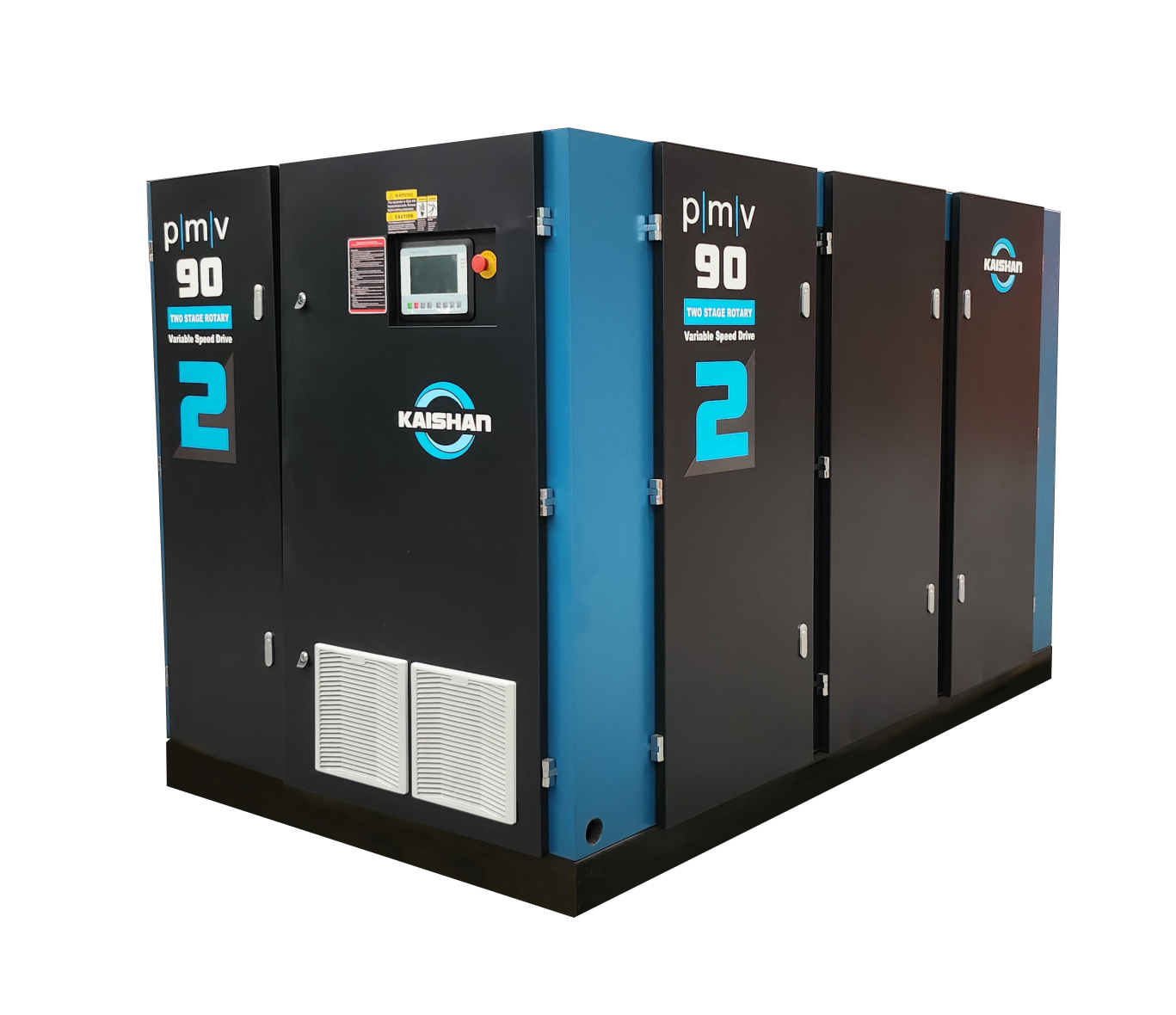

PMV2-90
-
90 (kW)
-
7 - 7.5 Bar = 741 CFM / 101-108 PSI
8 - 8.5 Bar = 679 CFM / 116-123 PSI
10 - 10.5 Bar = 600 CFM / 145-152 PSI
-
311 × 178 × 202 (L x W x H cm)
3600 (Kg)
-
72 (dB(A))
PMV2-110
-
110 (kW)
-
7 - 7.5 Bar = 907 CFM / 101-108 PSI
8 - 8.5 Bar = 812 CFM / 116-123 PSI
10 - 10.5 Bar = 688 CFM / 145-152 PSI
-
311 × 189 × 206 (L x W x H cm)
4450 (Kg)
-
73 (dB(A))
PMV2-132
-
132 (kW)
-
7 - 7.5 Bar = 1094 CFM / 101-108 PSI
8 - 8.5 Bar = 949 CFM / 116 - 123 PSI
10 - 10.5 Bar = 847 CFM / 145 - 152 PSI
-
344 × 193 × 226 (L x W x H cm)
5100 (Kg)
or
310 × 189 × 206
4450 (Kg)
-
74 (dB(A))
PMV2-160
-
160 (kW)
-
7 - 7.5 Bar = 1341 CFM / 101-108 PSI
8 - 8.5 Bar = 1211 CFM / 116-123 PSI
10 - 10.5 Bar = 1094 CFM / 145-152 PSI
-
416 × 226 × 228 (L x W x H cm)
6100 (Kg)
-
75 (dB(A))
PMV2-185
-
185 (kW)
-
7 - 7.5 Bar = 1451 CFM / 101-108 PSI
8 - 8.5 Bar = 1405 CFM / 116-123 PSI
10 - 10.5 Bar = 1200 CFM / 145-152 PSI
-
416 × 226 × 228 (L x W x H cm)
6200 (Kg)
-
76 (dB(A))
PMV2-200
-
200 (kW)
-
7 - 7.5 Bar = 1624 CFM / 101-108 PSI
8 - 8.5 Bar = 1522CFM / 116-123 PSI
10 - 10.5 Bar = 1412 CFM / 145-152 PSI
-
4160 × 226 × 228 (L x W x H cm)
6450 (Kg)
or
6300 (Kg)
-
76 (dB(A))
PMV2-220
-
220 (kW)
-
7 - 7.5 Bar = 1871 CFM / 101-108 PSI
8 - 8.5 Bar = 1676 CFM / 116-123 PSI
10 - 10.5 Bar = 1518 CFM / 145-152 PSI
-
416 × 226 × 235 (L x W x H cm)
8920 (Kg)
-
78 (dB(A))
PMV2-250
-
250 (kW)
-
7 - 7.5 Bar = 2012 CFM / 101-108 PSI
8 - 8.5 Bar = 1843 CFM / 116-123 PSI
10 - 10.5 Bar = 1659 CFM / 145-152 PSI
-
426 × 241 × 235 (L x W x H cm)
9420 (Kg)
or
416 × 226 × 235 (L x W x H cm)
9220 (Kg)
-
78 (dB(A))
